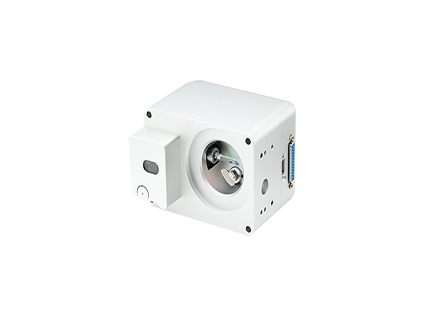

mc1603 high speed galvo scanner motors are introduced from america.
it has good running stability, high positioning accuracy, fast marking speed, strong anti-interference ability, the overall performance of mc1603 has reached the international leading level in this field.
the advantages are as following:
■ built-in 13 million pixel camera, positioning accuracy error is only 0.1mm.
■ with visual positioning module, it can automatically search for the target and calculate the marking position.
■ adopted high-performance scanning motor which imported from the america and the international advanced photoelectric sensing technology.
■ differential photoelectric sensor for accurate detection of motor rotor position, good linearity, lower drift, high resolution and repeat positioning.
■ drives with advanced detection ability of position and speed, greatly improving the dynamic response performance and scanning speed of the whole system.
■ design of overload, over-current and reverse connect protection, making the system running more reliable.
■ the whole system adopting the optimization designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability.
■ smaller scanner size, which meets the increasing industrial demands of higher precision and more compact systems.
■ mc1603 scan head can be integrated into different application systems easily. the housing is very strong and dustproof. thus it can be used in the extremely bad environment.
mc1603 technical parameters
speed | |
marking speed(1) | 4000mm/s |
positioning speed(1) | 4000mm/s |
writing speed(2) | 301cps |
step response time(1% of full scale) | 370us |
step response time(10% of full scale) | 630us |
tracking error time | ≤202us |
precision and error | |
linearity | 99.9% |
repeatability (rms) | ＜8μrad |
gain error | ＜5mrad |
zero offset | ＜5mrad |
long-term drift over 8 hours | ＜0.5mrad |
scale drift | ＜40ppm/℃ |
zero drift | ＜15μrad./℃ |
lens damage threshold | |
k9 matrix | 9.1j/cm^2 |
si matrix | 10j/cm^2 |
wavelength(3) | 10600nm/1064nm/355nm |
power and signal | |
input voltage | ±15vdc |
rated current | 2a |
interface signal | xy2-100 |
max machinery scan angle(4) | ±11° |
working current, temperature, dimension | |
working temperature | 0℃--45℃ |
storage temperature | -10℃--60℃ |
aperture | 10mm |
galvanometer scanner dimension (lxwxh) | 134×96.5×120.6mm |
galvanometer scanner weight | ≈0.9kg |
auto-focusing control parameters | |
measure solution | laser ranging |
measure resolution | 0.01mm |
measure accuracy | ±0.1mm |
laser wavelength | 620~690nm |
single measurement time | 0.2s |
note: the above data are tested after 30 min warm-up
(1) with f-theta objective, f=160mm, marking 2mm height single character
(2) with f-theta objective, f=160mm, marking 1mm height single character per second
(3) special wavelength coating film can be customized
(4) if any special requirement, customization is available. factory default value is ±11°
